Resin Infusion connector/Pcs

Specification

Fabric Specification

Colour	Black
Fibre Orientation	0, 95
Format	Woven Fabric
Filament Count	3k
Fibre Type	Carbon Fibre
Fibre Specifics	Pyrofil TR30S 3k
Ends	7	cm
Picks	7	cm
Weave	4 x 4 Twill

Weight and Dimensions

Width	1250	mm
Thickness	0.3	mm
Consolidated Thickness	0.3	mm
Areal Weight	285	g/m²

Fibre Properties

UV Resistance	Fully UV Stable
Filament Diameter	7	µm
Tensile Strength	4120	MPa
Tensile Modulus	234	GPa
Elongation at Break	1.8	%
Density	1.79	g/cm³

General Properties

Gross Weight	0.36	kg

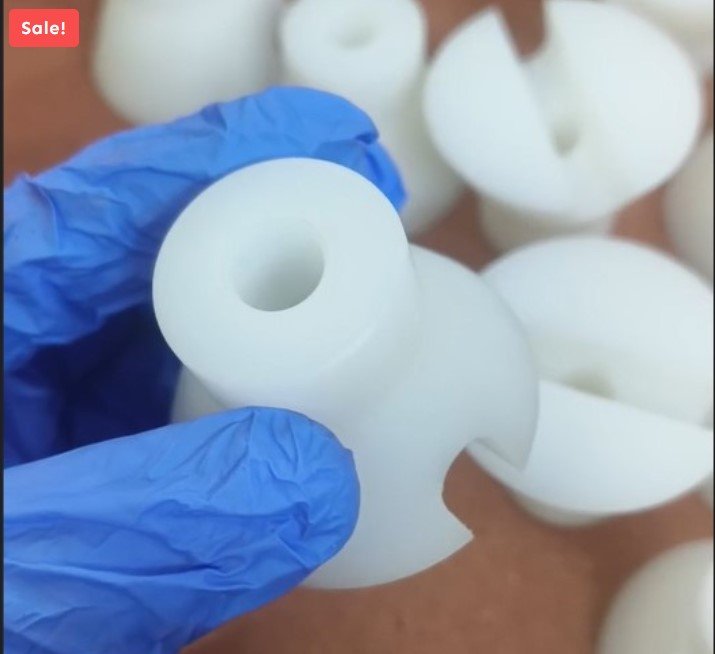

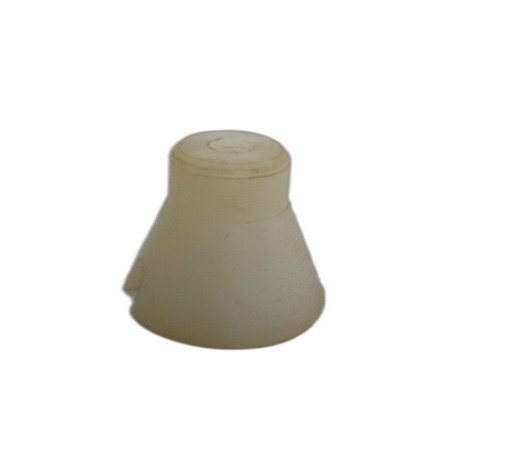

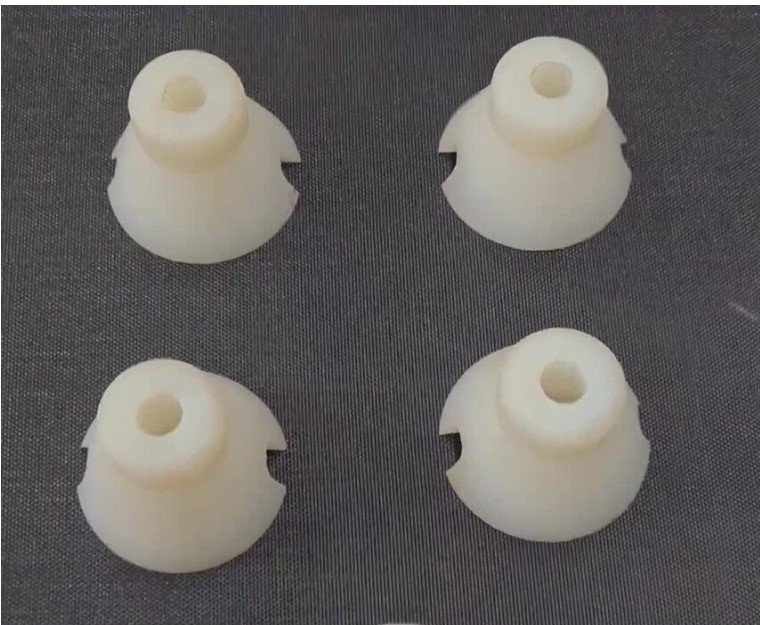

Reusable silicone connector designed specifically for the resin infusion process. The connector sits inside the vacuum bag and accepts a 9mm OD vacuum hose and has a slot underneath to feed into the resin infusion spiral.

On the underside of the connector is a 4-way channel that ensures a good air channel for the vacuum line into the project or alternatively a good flow of resin into the infusion spiral.

This new design replaces our old resin infusion connectors where a different connector was used for the resin line and the vacuum line whilst at the same time improving the performance of the connector for both these uses.

These infusion connectors are re-usable and can be removed from the cured laminate and resin once and infusion is complete and used again. When used with epoxy resin the connectors will have a finite lifespan and over time the epoxy will start to perish the connectors whereupon they will need replacing. For this reason we offer excellent volume discounts for connectors purchased as 10 or more or even 50 or more at a time.

Compare

Trade discounts

Bulk Oder Email funiquecomposites@gmail.com and contact No. +91 9625262822

TABLE 1	TABLE 2	TABLE 3
0-4	5-9	10-49
Rs=46.20	Rs=44.40	Rs=43.20

We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

Downloads

Technical DataSheet (TDS)

Pdf

Technical DataSheet (TDS)

Pdf

Shipping Information

Restrictions

This product is not classed as dangerous goods for transport and can be shipped to all destinations without restriction.

Package Size

When packaged, this product is over 1m in length. A small additional handling charge will apply when shipping to some countries and regions. When applicable, this handling charge will be included in the automatic shipping calculation shown on the basket page.

Delivery Cost

To find the delivery cost of this item to your address, add it to your basket and then use the instant shipping calculator on the basket page.

How to Buy

Our 285g carbon fibre cloth is available to buy in 1.25m (49″) width. The fabric is sold by the linear metre. The unit price shown is for 1 linear metre but volume discounts automatically apply for larger quantities of fabric.

Please select your chosen fabric width and then purchase the number of linear metres you require. When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.
